Bosch injector length







Bosch injectors and physical dimensions / length

Here we check how long the injector will be by assembling them together with adapters. This rebuilds suit most installations. Here we also see the different standard lengths available.

Bosch Compact - 33,60mm betreen the O-rings (33,5mm)
Bosch Standard - 48,65mm between the O-rings (50mm)
Bosch Long - 60,65mm between the O-rings (60mm)

The injector tip is normally 11mm, but there is also a longer version of 24mm available -see picture.




The different injectors included here are:

  1. Bosch 550cc
  2. Bosch 630cc
  3. Bosch 870cc
  4. Bosch 980cc
  5. Bosch 1200cc
  6. Bosch 1300cc
  7. Bosch 1500cc
  8. Bosch 1700cc
  9. Bosch 2200cc
  10. Bosch 2200cc NGI2

At the bottom there is a video about the different adapters that can be fitted to get different injector lengths.




1 ▼

Bosch 550cc



Bosch 550cc 50mm (48,65mm)
Top: No adapter
Bottom: No adapter

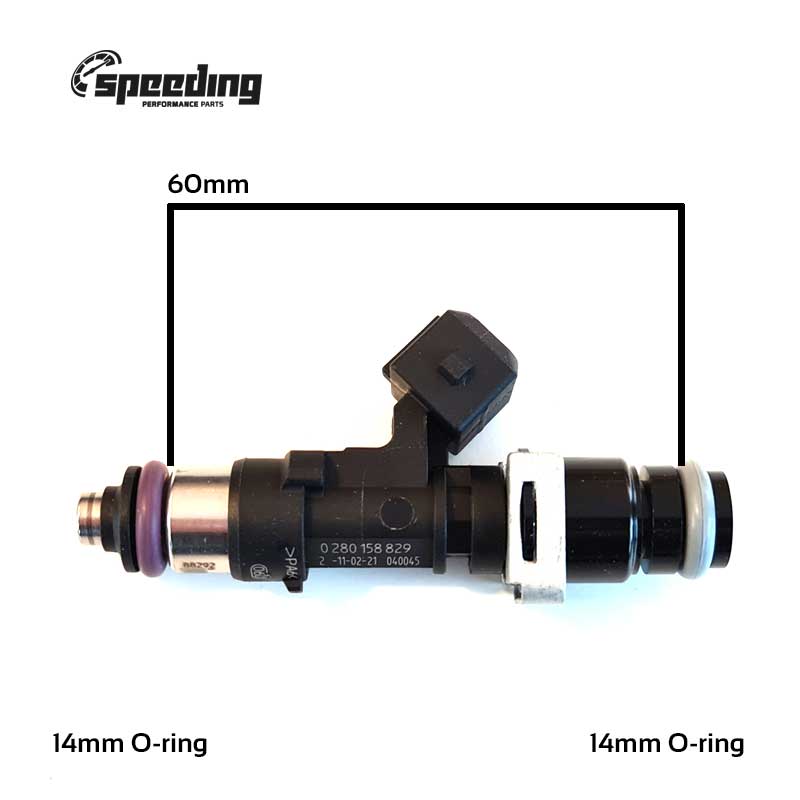

Bosch 550cc 60mm (60,65mm)
Top: 11mm short adapter
Bottom: No adapter

Bosch 550cc 60mm (60,65mm)
Top: 14mm short adapter
Bottom: No adapter





2 ▼

Bosch 630cc



Bosch 630cc 50mm (48,65mm)
Top: No adapter
Bottom: No adapter

Bosch 630cc 60mm (60,65mm)
Top: 11mm short adapter
Bottom: No adapter



Bosch 630cc 60mm (60,65mm)
Top: No adapter
Bottom: 14mm short adapter

Bosch 630cc 60mm (60,65mm)
Top: 14mm short adapter
Bottom: No adapter





3 ▼

Bosch 870cc



Bosch 870cc 33,5mm (33,60mm)
Top: No adapter
Bottom: No adapter

Bosch 870cc 50mm (48,65mm)
Top: No adapter
Bottom: 14mm short adapter

Bosch 870cc 60mm (60,65mm)
Top: 11mm short adapter
Bottom: 14mm short adapter

Bosch 870cc 60mm (60,65mm)
Top: 11mm long adapter
Bottom: No adapter

Bosch 870cc 60mm (60,65mm)
Top: 14mm short adapter
Bottom: 14mm short adapter

Bosch 870cc 60mm (60,65mm)
Top: 14mm long adapter
Bottom: No adapter





4 ▼

Bosch 980cc

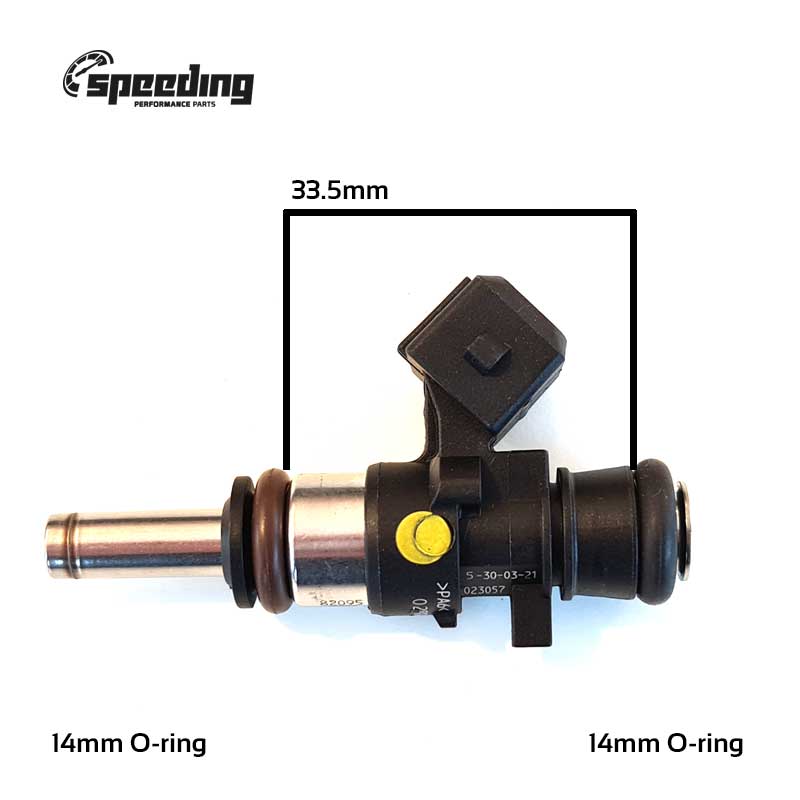

Bosch 980cc 33,5mm (33,60mm)
Top: No adapter
Bottom: No adapter

Bosch 980cc 50mm (48,65mm)
Top: No adapter
Bottom: 14mm short adapter

Bosch 980cc 60mm (60,65mm)
Top: 11mm short adapter
Bottom: 14mm short adapter

Bosch 980cc 60mm (60,65mm)
Top: 11mm long adapter
Bottom: No adapter

Bosch 980cc 60mm (60,65mm)
Top: 14mm short adapter
Bottom: 14mm short adapter

Bosch 980cc 60mm (60,65mm)
Top: 14mm long adapter
Bottom: No adapter





5 ▼

Bosch 1200cc



Bosch 1200cc 33,5mm (33,60mm)
Top: No adapter
Bottom: No adapter

Bosch 1200cc 50mm (48,65mm)
Top: No adapter
Bottom: 14mm short adapter

Bosch 1200cc 60mm (60,65mm)
Top: 11mm short adapter
Bottom: 14mm short adapter

Bosch 1200cc 60mm (60,65mm)
Top: 11mm long adapter
Bottom: No adapter

Bosch 1200cc 60mm (60,65mm)
Top: 14mm short adapter
Bottom: 14mm short adapter

Bosch 1200cc 60mm (60,65mm)
Top: 14mm long adapter
Bottom: No adapter





6 ▼

Bosch 1300cc



Bosch 1300cc 33,5mm (33,60mm)
Top: No adapter
Bottom: No adapter

Bosch 1300cc 50mm (48,65mm)
Top: No adapter
Bottom: 14mm short adapter

Bosch 1300cc 60mm (60,65mm)
Top: 11mm short adapter
Bottom: 14mm short adapter

Bosch 1300cc 60mm (60,65mm)
Top: 11mm long adapter
Bottom: No adapter

Bosch 1300cc 60mm (60,65mm)
Top: 14mm short adapter
Bottom: 14mm short adapter

Bosch 1300cc 60mm (60,65mm)
Top: 14mm long adapter
Bottom: No adapter





7 ▼

Bosch 1500cc



Bosch 1500cc 33,5mm (33,60mm)
Top: No adapter
Bottom: No adapter

Bosch 1500cc 50mm (48,65mm)
Top: No adapter
Bottom: 14mm short adapter

Bosch 1500cc 50mm (48,65mm)
Top: 11mm short adapter
Bottom: 14mm short adapter

Bosch 1500cc 60mm (60,65mm)
Top: 11mm long adapter
Bottom: No adapter



Bosch 1500cc 60mm (60,65mm)
Top: 11mm long adapter
Bottom: No adapter







8 ▼

Bosch 1700cc



Bosch 1700cc 60mm (60,65mm)
Top: No adapter
Bottom: No adapter




9 ▼

Bosch 2200cc



Bosch 2200cc 33,5mm (33,60mm)
Top: No adapter
Bottom: No adapter

Bosch 2200cc 50mm (48,65mm)
Top: 11mm short adapter
Bottom: No adapter

Bosch 2200cc 50mm (48,65mm)
Top: 14mm short adapter
Bottom: No adapter

Bosch 2200cc 60mm (60,65mm)
Top: 11mm long adapter
Bottom: No adapter



Bosch 2200cc 60mm (60,65mm)
Top: 14mm long adapter
Bottom: No adapter







10 ▼

Bosch 2200cc NGI2



Bosch 2200cc NGI2 50mm (48,65mm)
Top: No adapter
Bottom: No adapter

Bosch 2200cc NGI2 60mm (60,65mm)
Top: 11mm short adapter
Bottom: No adapter

Bosch 2200cc NGI2 60mm (60,65mm)
Top: 11mm short adapter
Bottom: No adapter

11 ▼
