Link ECU Toyota 1JZ-GTE (Non-VVTi) Engine management

Name: Link ECU Toyota 1JZ-GTE (Non-VVTi) Engine management
Brand: Link - ECU
Price: 1311.8625 GBP
Availability: InStock

Link - ECU

Easy to install. Affordable. Reliable.

Reviews

Help others choose right. Be the first to write a review!

Write a review

Tags Toyota 1JZ

Part no: LNK-235-4000

Description
Specification
Reviews
Ask about product

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 1JZ-GTE (Non-VVTi) engine.

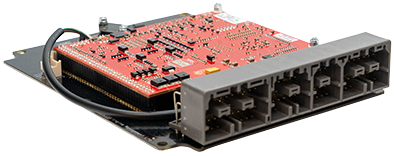

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
ECU includes an onboard 7 bar MAP sensor.
Most factory features are supported (Factory traction control not supported, dashlight may be illuminated).
Check the features tab for I/O expansion options

Suitable applications:

Toyota JZX90 (Chaser/Cresta/Mark II) with 1JZ-GTE (Non-VVTi) engine, Manual Transmission
Toyota JZZ30 (Soarer) with 1JZ-GTE (Non-VVTi) engine, Manual Transmission

Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

I/O Expansion Options:
The following expansion connector inputs/outputs are provided:

Expansion Connector 1:
