Adapter for 70, 80, 90, 100mm throttle body

Adapter for our 70, 80, 90 and 100 mm throttle bodies. You unscrew the original bracket on the throttle body housing and mount this adapter instead. Most have two loose spacers behind the bracket, these must remain.
I lager

2-4 days

£ 22.50
Reviews

Help others choose right. Be the first to write a review!

Write a review
Part no: SPD-01105-SPEC

Adapter for our 70, 80, 90 and 100 mm throttle bodies.

You unscrew the original bracket on the throttle body housing and mount this adapter instead.

Most have two loose spacers behind the bracket, these must remain.

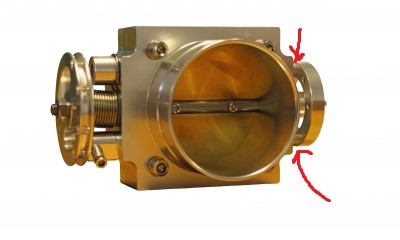

If the original ring has fixed "distances", you can make two distances that are 7mm high (see picture 2)

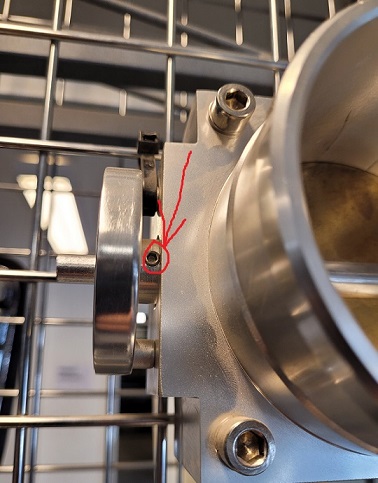

You also have to turn the bracket on the damper shaft, see zoom image 3, Marked in red

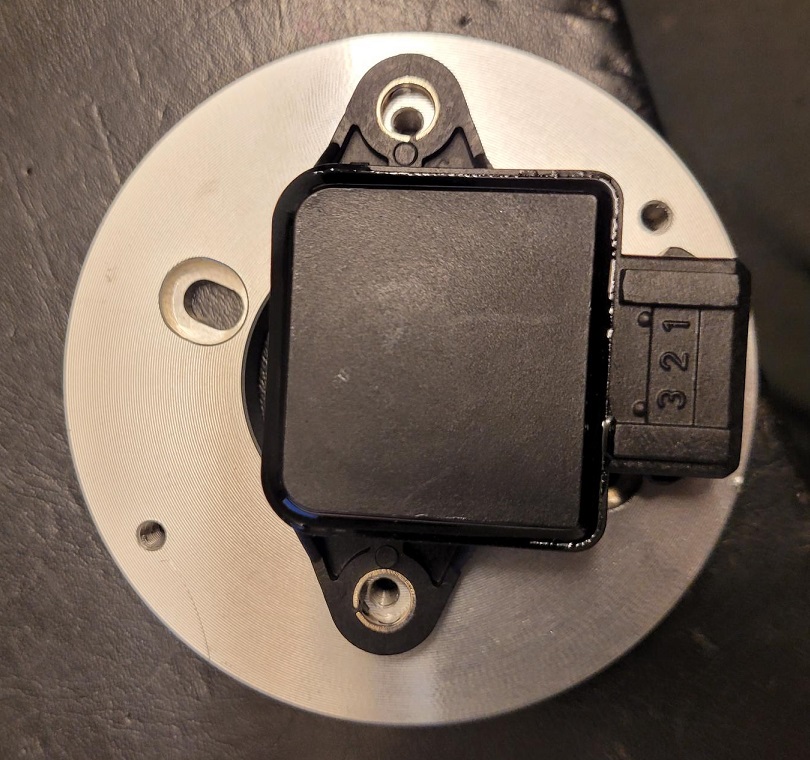

Then you can use, among other things, the following Tps sensor:

Bosch 0280120325 & Bosch 0280122001.

NOTE: Keep in mind that in some cases you have to polish off the damper shaft 0.1mm (1/10) right where the sensor should sit because the shaft is 7.1mm and many sensors are intended for a 7.0mm shaft (sometimes it is still possible to press , but you risk breaking the damper position sensor in case of ice
