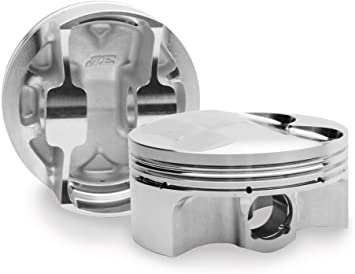

JE Piston BMW M30 B35 / S38 B35 (94,00mm)
JE Pistons
10,5:1 / 144,00mm rod
Reviews
Help others choose right. Be the first to write a review!
Write a reviewJE Piston BMW M30 B35 / S38 B35 (94,00mm)
Original Specification
3,5 Liter 12V
Engine code: M30B35(M88/3)
Bore: 93,40
Displacement: 3453cc
Stroke: 86,00mm
Ventiler: 12
Block Ht:217,50
Comp. ratio: 9,8:1 / 10,5:1
Head cc: 42,50
Head gasket: 1,75mm
Rod length: 144,00mm
JE 349496C Specifikation:
Bore: 94,00mm
Comp. ht: 32,00
Dome/Dish cc: -8,5
Deck Cir: 0,50
Comp: 10,5:1
Piston pin: 22mm
piston rings: JG1001-3701
Weight (Gram): 362
Notes: F,M
One complete piston with rings and rod bolt
----------------
Guides & Info
| Bilmärke | BMW |
| Engine code | M30 |
| Engine code | S38 |
