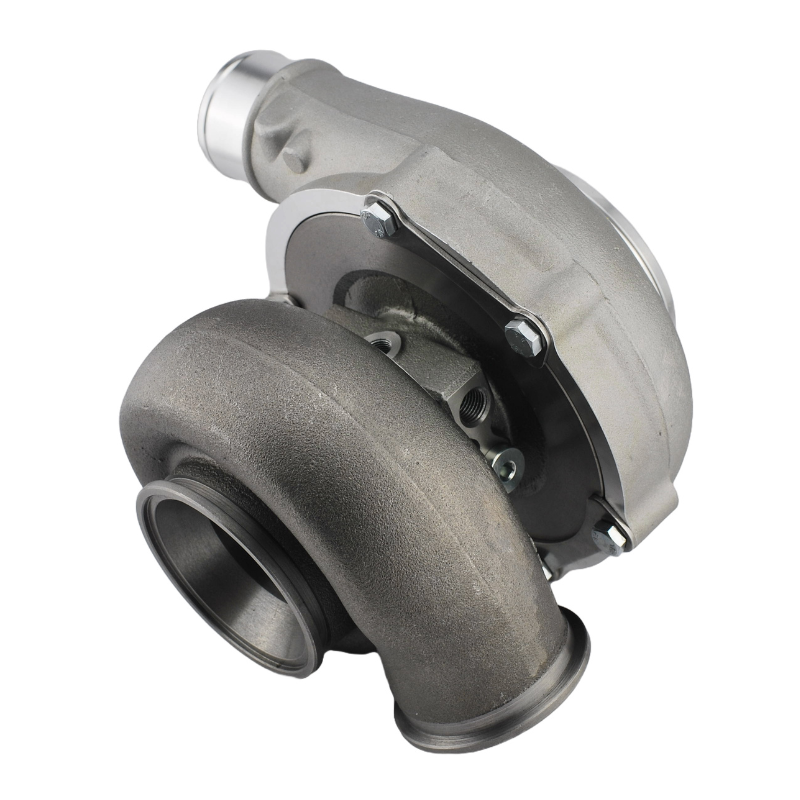

Hurricane 6262-900 A/R 1.21 Turbo
Hurricane Motorsport
Reviews
Help others choose right. Be the first to write a review!
Write a reviewHurricane 6262-900 A/R 1.21 Turbo
Hurricane 6262-900 A/R 1.21 ball-bearing top-of-the-line Turbocharger is perfect for Drifting and Drag racing up to 900hp with the highest possible peak power.
Hurricane 6262-900 A/R 1.21 Turbo suits 2,0 to 5,5-liter engines and produces 550-900hp on Gasoline, -990hp on Ethanol or -600hp on Diesel. Smaller engines (2,0-3,8L) will get fast spool times with the 62mm turbine, while bigger engines (3,8-5,5L) will get even faster spool times. The A/R 1,21 turbine housing gets you the highest possible peak power.
Compressor
A/R 0.72
61.75/76.6mm
Speed sensor outlet.
Clamp type: 6-Bolt clamp kit (included)
Anti-surge: Yes
Speed sensor port: Yes
Vacuum port: 1/8 -27 NPT
Inlet hose diameter: 4" / 102mm
Outlet hose diameter: 2" / 51mm
CHRA
Bearing: Dual ceramic ball bearings
Oil inlet: Special thread for ball bearing turbochargers to not get mixed with journal bearing oil inlets.
Adapter with 1mm restrictor hole.
Oil outlet: 38mm CC
Bolt thread: M8x1,25mm
Return port ID: 13mm
Cone seal as standard.
Washer seal surface available for optional adapters.
Water ports: M14x1,5
4x water ports total
2x on each side of the chra
2 plugs included
Compressor side clamp type: 6-Bolt clamp style
Turbine side clamp type: 95mm V-band
Turbine
68/62.32mm
Turbine Wheel fit: 68/62mm
A/R: 1,21
Inlet: 76mm V-band (Singel entry)
Outlet: 90mm V-band
CHRA connection: 95mm V-band
Wastegate: No
Material: SiMo Controlled Cast iron
Temperature: -750 degrees (1382F) MAX: 800°C (1472°F)
Rotation: Standard
----------------
Guides & Info
Be first to write a review about this product!
Your review:
To send a review, you must be logged in.
Air filter
Vacuum
Oil inlet
Oil drain
Compressor outlet
Water connection
Exhaust outlet
Exhaust inlet
Garrett V-band 3.0" G25/30/35 GT/GTX28/30/35
Fits Grrett 3,0" turbine housing inlet / outlet
In stock
Suitable adapter
Suitable sensor
Turbinehousing
Supercore
