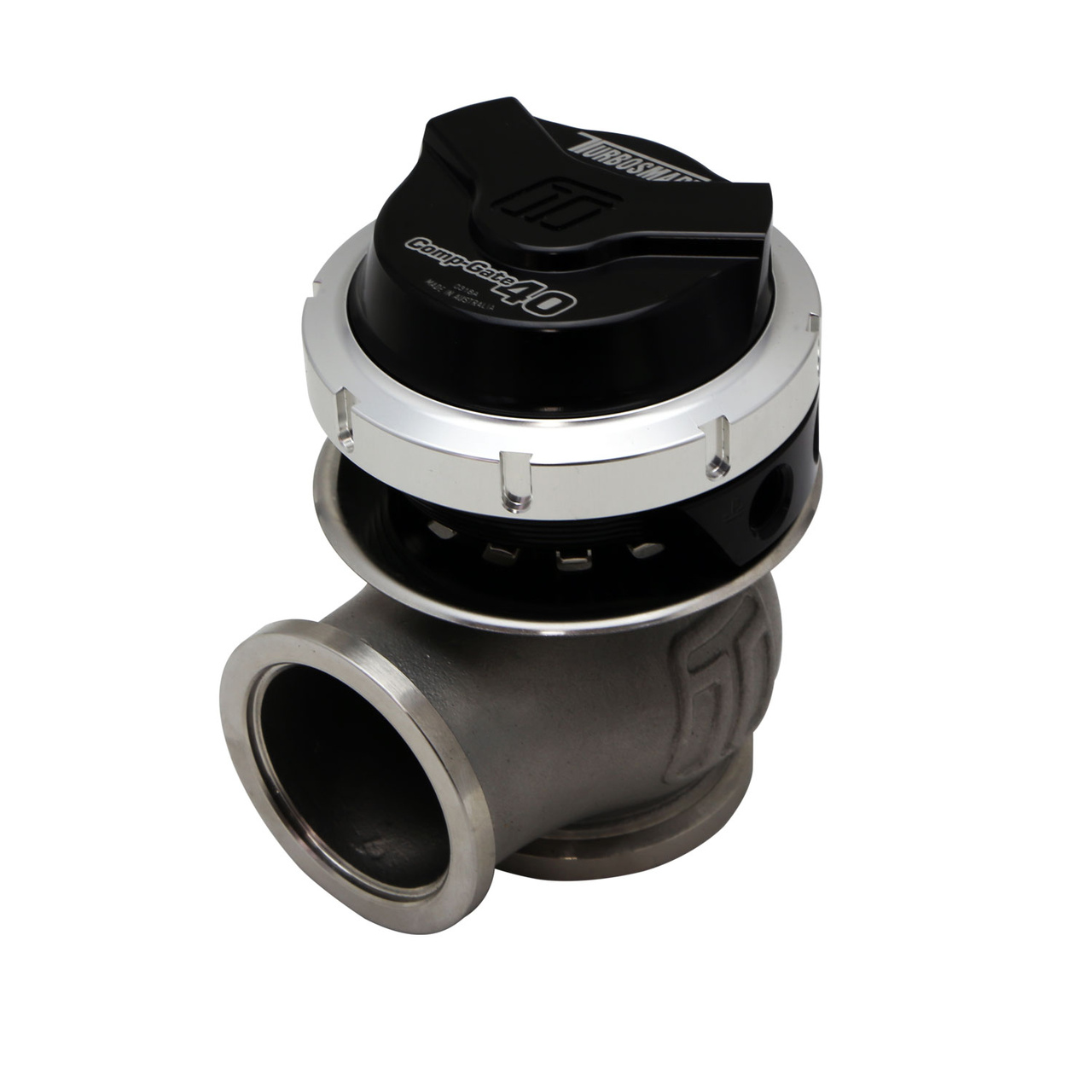

Turbosmart wastegate Gen-V Comp-Gate 40
Turbosmart
Reviews
Help others choose right. Be the first to write a review!
Write a reviewTurbosmart wastegate Gen-V Hyper-Gate 40
The Gen-V WG40 Hyper-Gate40 external wastegate is a cost effective, high performing 40mm external wastegate.
The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.
Available in Motorsport / Compressed Gas configurations
Product features summary:
• Liquid cooling provision
• Strap type V-band clamps
• User adjustable actuator position
• Modular actuator design Motorsport / Compressed Gas configurations available
Included in the Box
• Wastegate unit (pre-assembled with spring as per order)
• SS316 Valve seat
• Inlet V-Band
• Inlet SS304 weld flange
• Outlet V-Band
• Outlet SS304 weld flange
• Collar tool (master/slave)
• 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
• 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
• Sticker
• Instruction card
----------------
