Hurricane 7975-1450 A/R 1.01 Turbo
Hurricane Motorsport
Reviews
Help others choose right. Be the first to write a review!
Write a reviewHurricane 7975-1450 A/R 1.01 Turbo

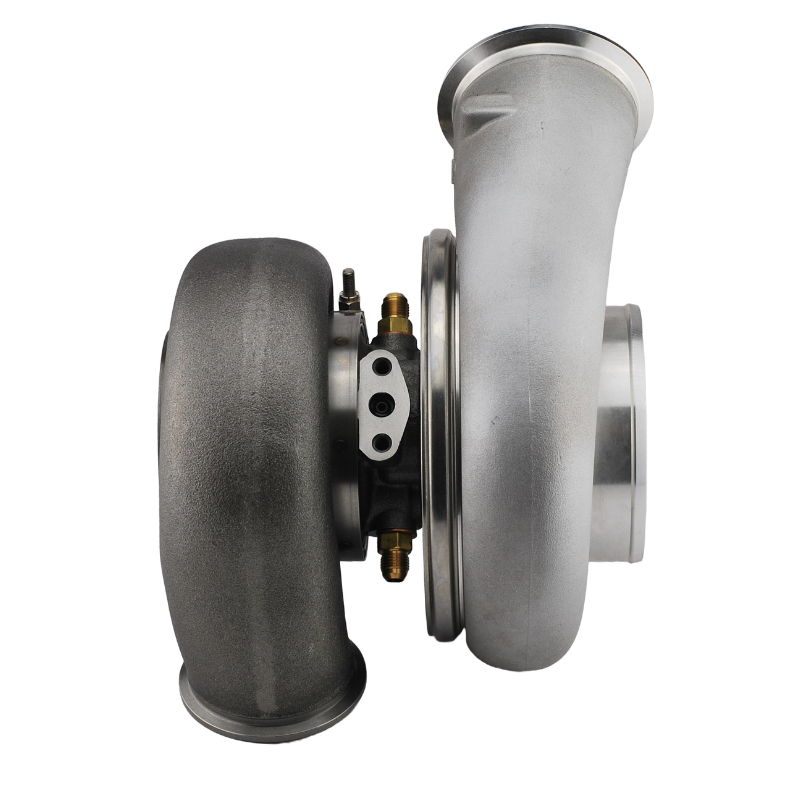

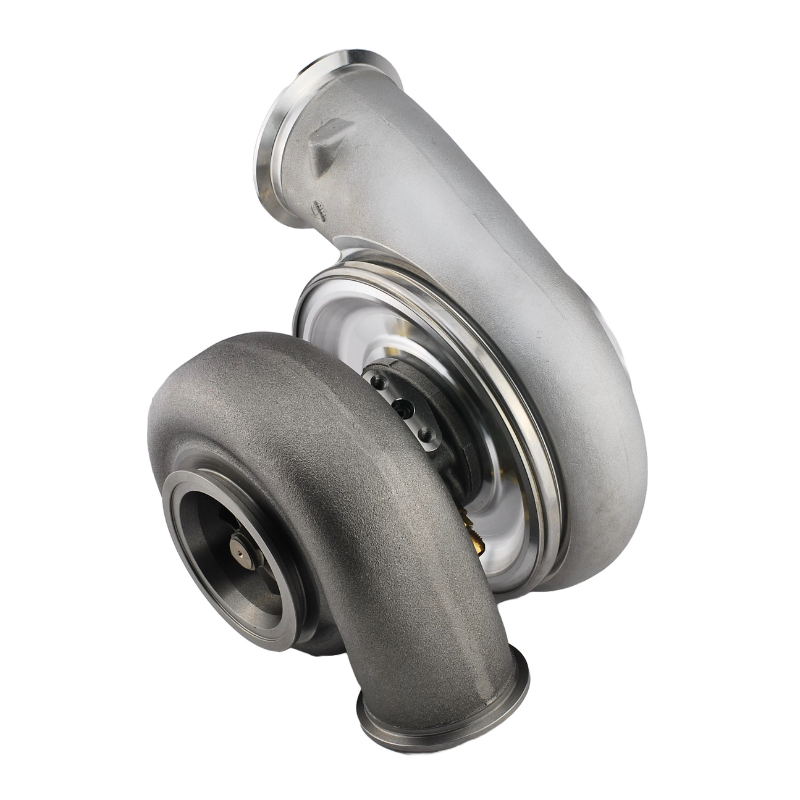

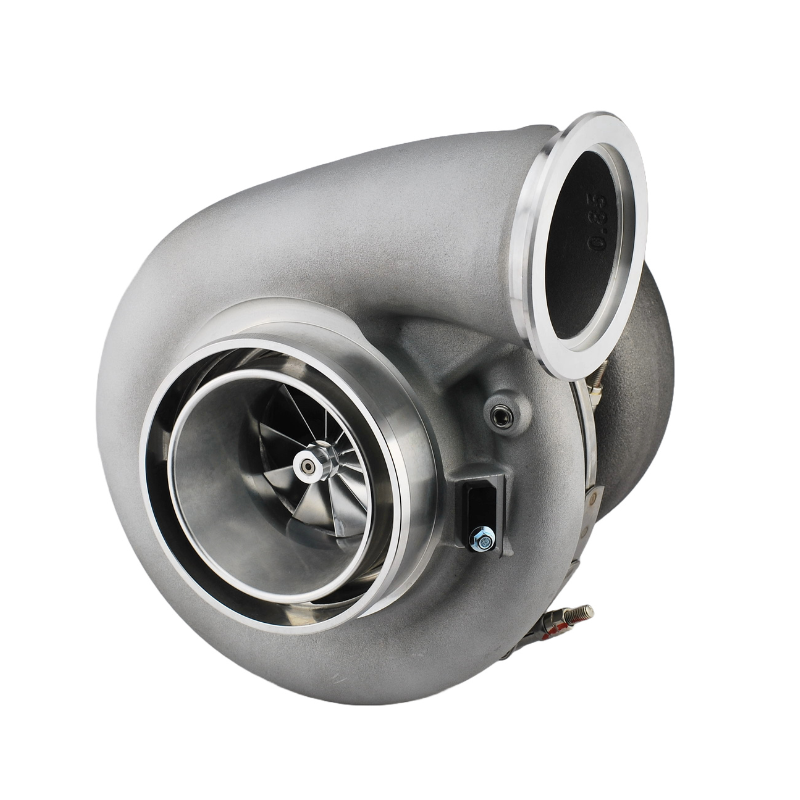

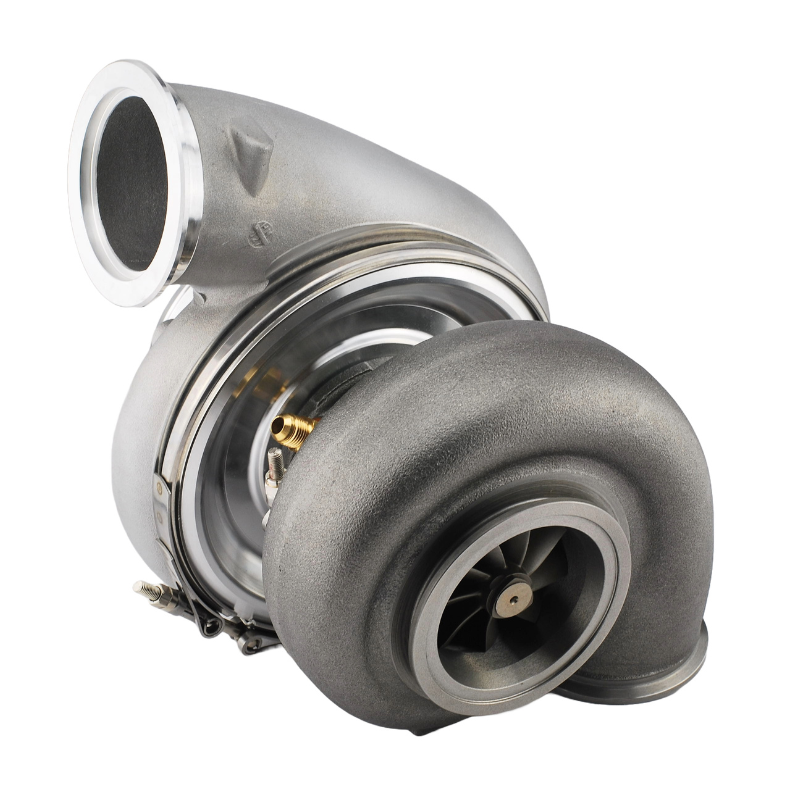

Hurricane 7975-1450 A/R 1.01 ball-bearing top-of-the-line Turbocharger is perfect for Street use, Track racing, Drifting, and Drag racing up to 1450hp. Its combination of fast spool and high peak power makes it ideal for these applications.
Hurricane 7975-1450 A/R 1.01 T4 Turbo suits 2,0 to 8,0-liter engines and produces 525-1450hp on Gasoline, -1550hp on Ethanol or -950hp on Diesel. Smaller engines (2,0-5,0L) will get fast spool times with the 75mm turbine, while bigger engines (5,0-8,0L) will get even faster spool times. The A/R 1,01 turbine housing gets you a combination of fast spool and high peak power.
Compressor
A/R 0.85
79/98mm
Clamp type: 200mm V-band (included)
Anti-surge: Yes
Speed sensor port: Yes
Vacuum port: 1/8 -27 NPT
Inlet hose diameter: 5" / 127mm
Outlet: 107mm V-band
CHRA
Oil inlet: 38mm CC flange
Oil outlet: 51mm CC flange
Bolt thread: M8x1,25mm
Return port ID: 18mm
Water ports: M14x1,5
2x water ports
2x on each side of the chra
Compressor side clamp type: 200mm V-band
Turbine side clamp type: 114mm V-band
Turbin
82/75.25mm
Turbine Wheel fit: 82/75mm
A/R: 1,01
Inlet: 92mm V-band (Singel entry)
Outlet: 109mm V-band
CHRA connection: 114mm V-band
Wastegate: No
Material: SiMo Controlled Cast iron
Temperature: -750 degrees (1382F) MAX: 800°C (1472°F)
Rotation: Standard
----------------
