Hurricane Turbo
Hurricane Turbo has 20 years of combined knowledge in ball bearing top performance turbochargers for street and racing. -With warranty.
Choose the correct turbo in 3 simple steps with the turbo guide.
3 simple steps to the correct turbocharger:
Turbo options
- Supercore
- Turbine Housing
- Complete Turbo
- Compressor Wheel
- Compressor Housing
- Turbine Wheel

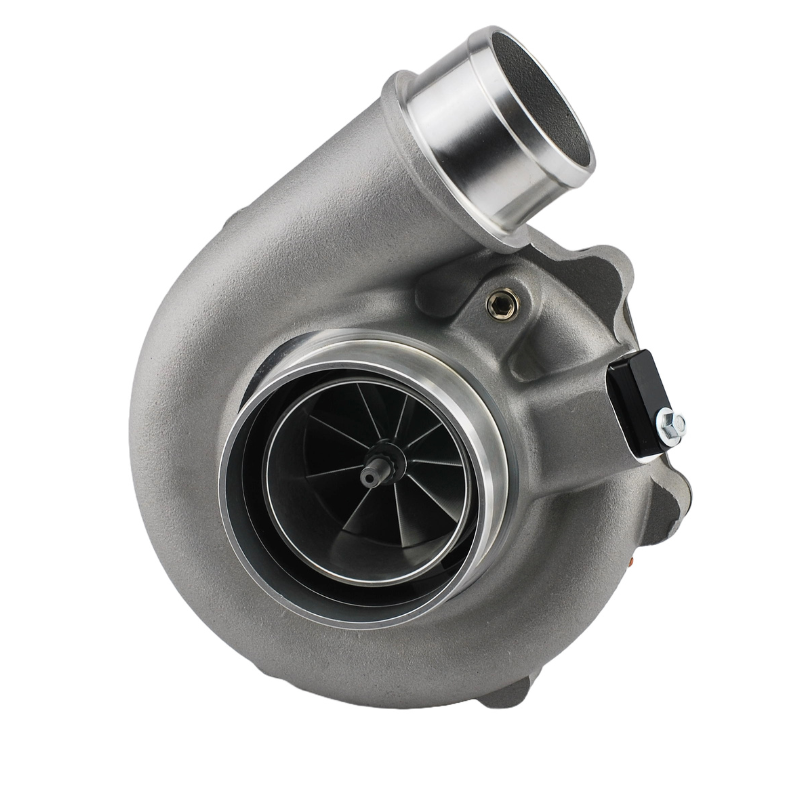

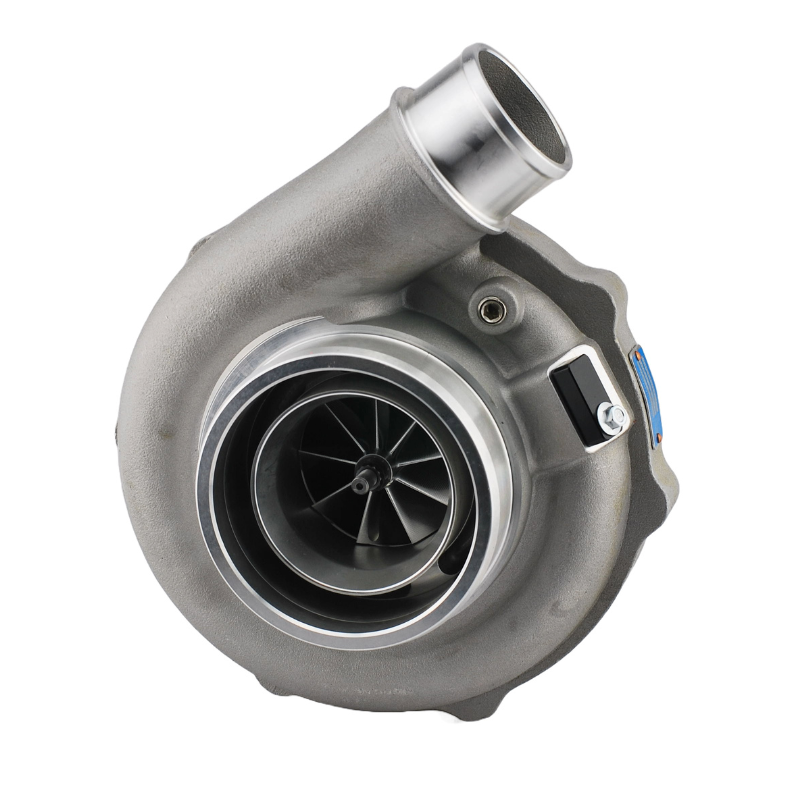

Supercore
Center section (CHRA) and compressor housing including fasteners for mounting the compressor housing onto the CHRA (Center Housing Rotating Assembly)
9 different Supercore:
- 4849-550
- 5449-660
- 5455-660
- 5855-770
- 6255-900
- 6262-900
- 6862-1050
- 7375-1200
- 7975-1450
Turbine Housing
The turbine housing that is mounted onto the Supercore (against the CHRA). The name of the exhaust housing is the same as the inducer/exducer size of the turbine wheel that fits. For example, 54mm inducer and 49mm exducer = 5449.
10 different turbine housings with A/R:
- 0.72 V-band (5449)
- 0.72 V-band WG (5449)
- 0.83 V-band (6055)
- 1.01 V-band (6055)
- 1.21 V-band (6055)
- 0.83 V-band (6862)
- 1.01 V-band (6862)
- 1.21 V-band (6862)
- 1.01 V-band (8275)
- 1.01 V-band T4 (8275)

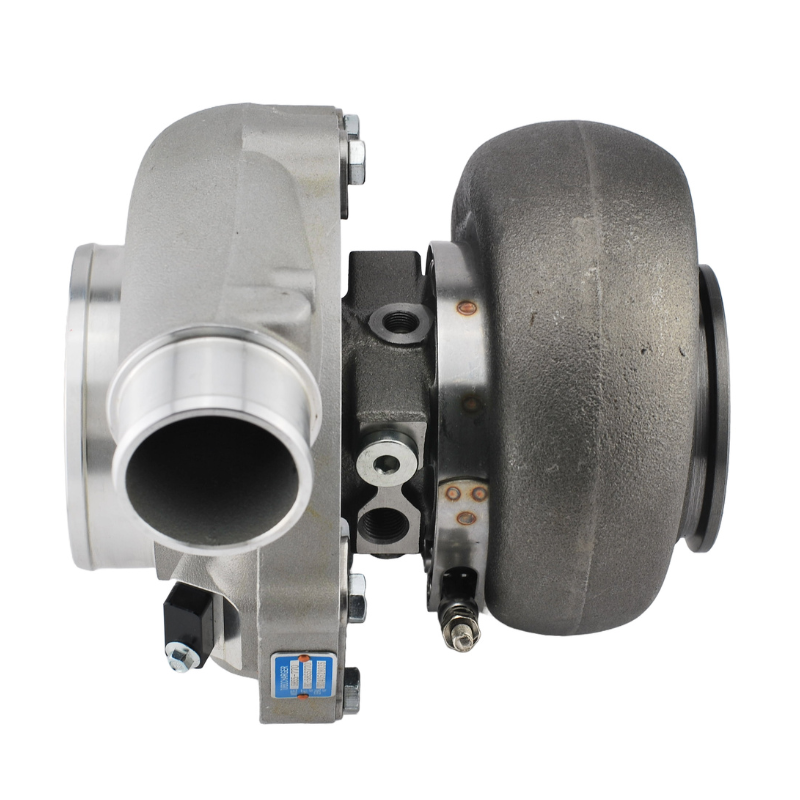

Complete Turbo
Supercore and turbine housing including CHRA clamp.
23 different complete turbos:
- 4849-550 A/R 0.72
- 4849-550 A/R 0.72 WG
- 5449-660 A/R 0.72
- 5449-660 A/R 0.72 WG
- 5455-660 A/R 0.83
- 5455-660 A/R 1.01
- 5455-660 A/R 1.21
- 5855-770 A/R 0.83
- 5855-770 A/R 1.01
- 5855-770 A/R 1.21
- 6255-900 A/R 0.83
- 6255-900 A/R 1.01
- 6255-900 A/R 1.21
- 6262-900 A/R 0.83
- 6262-900 A/R 1.01
- 6262-900 A/R 1.21
- 6862-1050 A/R 0.83
- 6862-1050 A/R 1.01
- 6862-1050 A/R 1.21
- 7375-1200 A/R 1.01
- 7375-1200 A/R 1.01 T4
- 7975-1450 A/R 1.01
- 7975-1450 A/R 1.01 T4

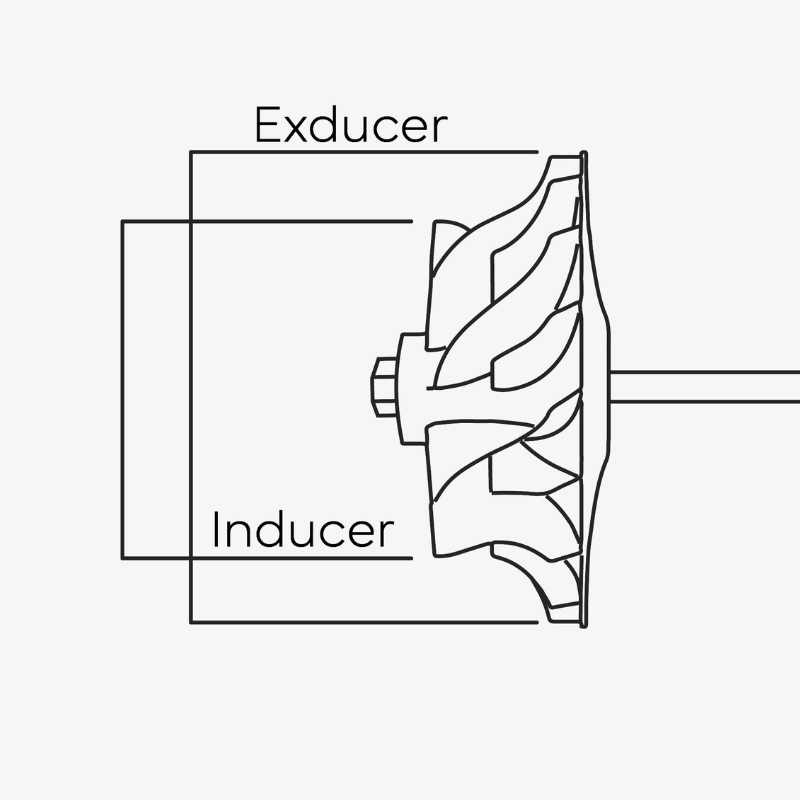

Compressor Wheel
The compressor wheel has two crucial sizes.
- Inducer (Inlet from air filter)
- Exducer (Outlet to engine)
9 different compressor wheels with
Inducer/Exducer:
- 4849-550 = 48.37/62.2mm
- 5449-660 = 54.34/67.4mm
- 5455-660 = 54.34/67.4mm
- 5855-770 = 57.56/71.4mm
- 6255-900 = 61.75/76.6mm
- 6262-900 = 61.75/76.6mm
- 6862-1050 = 68.07/84.44mm
- 7375-1200 = 73/91mm
- 7975-1450 = 79/98mm

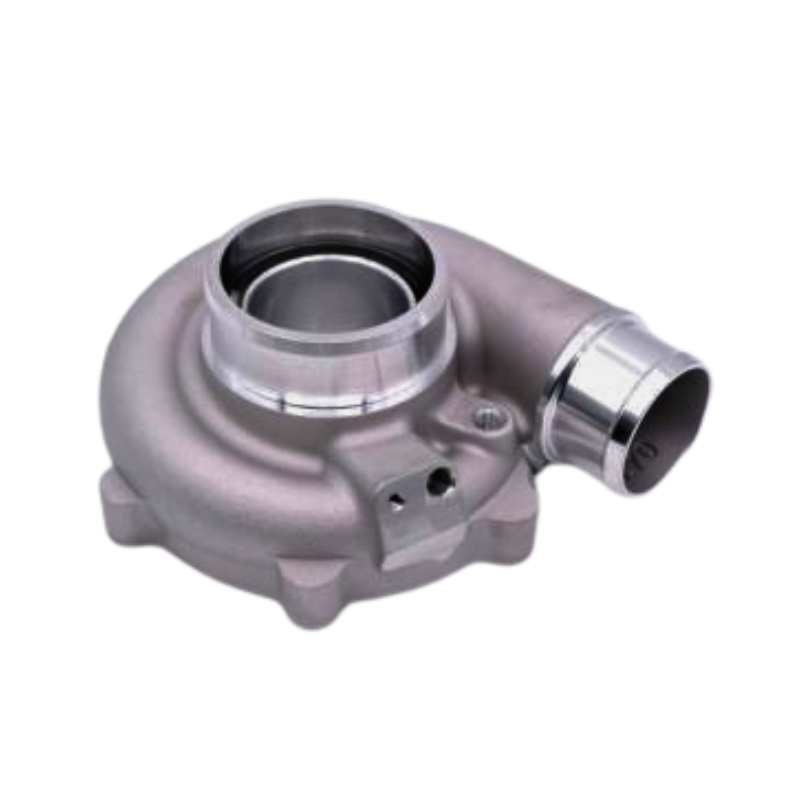

Compressor Housing
The compressor housing has 3 crucial sizes.
- It must fit the centre section (CHRA)
- It must fit the size of the compressor wheel (inducer/exducer)
- A/R size depending on engine size
3 different compressor housings A/R
A/R 0.70:
- 4849-550
- 5449-660
- 5455-660
A/R 0.72:
- 5855-770
- 6255-900
- 6262-900
- 6862-1050
A/R 0.85:
- 7375-1200
- 7975-1450

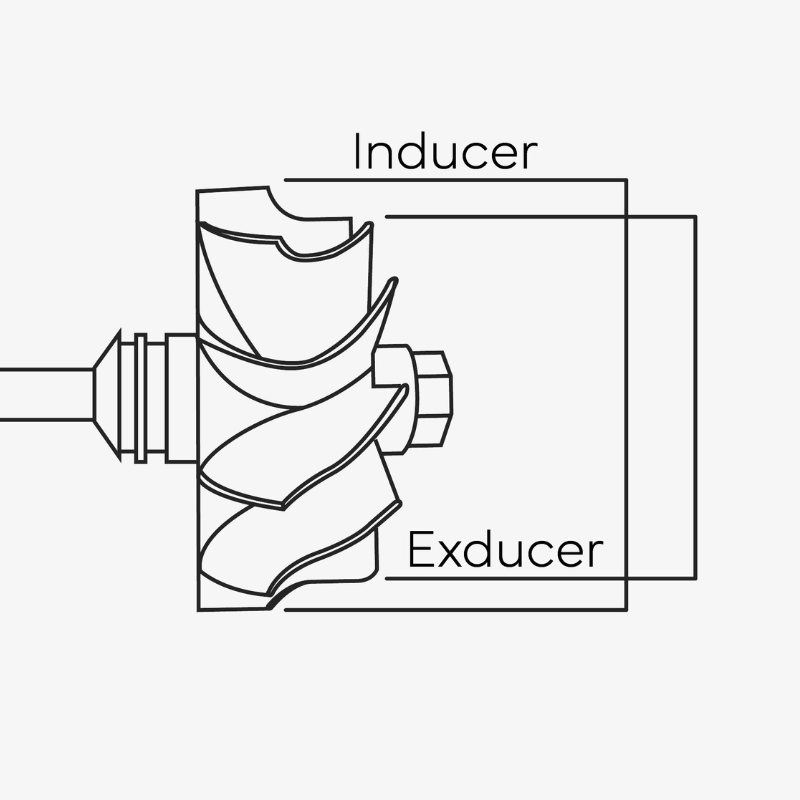

Turbine Wheel
The turbine wheel has two crucial sizes.
- Inducer (Inlet from the engine)
- Exducer (Outlet to exhaust system)
4 different turbine wheels with
Inducer/Exducer
53.85/49.36mm:
- 4849-550
- 5449-660
60/55mm:
- 5455-660
- 5855-770
- 6255-900
68/62.32mm:
- 6262-900
- 6862-1050
82/75.25mm:
- 7375-1200
- 7975-1450
Hurricane ceramic ball bearing system
The Hurricane ball bearing system features an advanced lightweight ceramic ball design, precision-engineered inner rings for accurate guidance, and a heat-dissipating housing. This cutting-edge combination delivers unparalleled low friction, exceptional durability, and superior stability, making it the ultimate choice for high-performance motorsport and custom turbocharger applications.
- Reduced Weight
Ceramic ball bearings are 60% lighter than standard designs, reducing overall system mass. - Enhanced Efficiency
Optimized materials and tolerances deliver faster spool, reduced heat generation, and improved performance. - Extended Durability
The ceramic-steel combination minimizes wear and oxidation, ensuring unmatched longevity in performance applications. - Faster Spooling
Superior material properties and precision tolerances enhance shaft stability for quicker turbo response. - Advanced Heat Management
Heat-treated ball guides and ceramic components effectively manage high temperatures, maintaining reliable performance across all operating conditions.
3 simple steps to the correct turbocharger:
Find your turbo size in a list.
How Do I Choose the Right Turbo for My Engine?
- Choose your desired maximum engine power.
- Select your engine displacement. If your engine displacement is larger than the range, move down one step in the list (higher number).
- Select your engine displacement again and see if you get fast, faster, or fastest turbo spool.
- Choose whether to increase, maintain, or decrease the turbo spool by selecting the size of the turbine housing.
- Now you will see the turbo part number that gives you the best performance.
- Hurricane 4849-550 A/R 0.72 Turbo WG
HC-4849550-072WGA - Hurricane 4849-550 A/R 0.72 Turbo
HC-4849550-072A - Hurricane 5449-660 A/R 0.72 Turbo WG
HC-5449660-072WGA - Hurricane 5449-660 A/R 0.72 Turbo
HC-5449660-072A - Hurricane 5455-660 A/R 0.83 Turbo
HC-5455660-083A - Hurricane 5455-660 A/R 1.01 Turbo
HC-5455660-101A - Hurricane 5455-660 A/R 1.21 Turbo
HC-5455660-121A - Hurricane 5855-770 A/R 0,83 Turbo
HC-5855770-083A - Hurricane 5855-770 A/R 1.01 Turbo
HC-5855770-101A - Hurricane 5855-770 A/R 1.21 Turbo
HC-5855770-121A - Hurricane 6255-900 A/R 0.83 Turbo
HC-6255900-083A - Hurricane 6255-900 A/R 1.01 Turbo
HC-6255900-101A - Hurricane 6255-900 A/R 1.21 Turbo
HC-6255900-121A - Hurricane 6262-900 A/R 0.83 Turbo
HC-6262900-083A - Hurricane 6262-900 A/R 1.01 Turbo
HC-6262900-101A - Hurricane 6262-900 A/R 1.21 Turbo
HC-6262900-121A - Hurricane 6862-1050 A/R 0.83 Turbo
HC-68621050-083A - Hurricane 6862-1050 A/R 1.01 Turbo
HC-68621050-101A - Hurricane 6862-1050 A/R 1.21 Turbo
HC-68621050-121A - Hurricane 7375-1200 A/R 1.01 Turbo
HC-73751200-101A - Hurricane 7375-1200 A/R 1.01 T4 Turbo
HC-73751200-101T4A - Hurricane 7975-1450 A/R 1.01 Turbo
HC-79751450-101A - Hurricane 7975-1450 A/R 1.01 T4 Turbo
HC-79751450-101T4A
3 simple steps to the correct turbocharger:
Sort by displacement
300-720hp / 1,4-3,0L
350-990hp / 2,0-3,5L
550-1150hp / 2,0-5,5L
475-1550hp / 2,0-8,0L
3 simple steps to the correct turbocharger:
Sort by turbine size
1.4-3.0 Liters - MAX 720hp
2.0-3.5 Liters- MAX 990hp
2.0-5.5 Liters- MAX 1150hp
2.0-8.0 Liters - MAX 1560hp
Gasoline max 1200hp
Ethanol max 1300hp
Gasoline max 1450hp
Ethanol max 1550hp
3 simple steps to the correct turbocharger:
20 years of combined knowledge
By gathering all this knowledge and applying it in the development of Hurricane Turbo, we can offer turbochargers that deliver high performance and exceed expectations in terms of durability and reliability. Our commitment to quality and innovation ensures that you always get the best of the best – turbochargers that are carefully designed to meet your specific needs.
When you choose Hurricane Turbo, you are choosing a product with a strong history of success, knowledge, and reliability. We don’t just build turbos – we build trust.
3 simple steps to the correct turbocharger:
Warranty
Providing a warranty on our turbochargers is a given for us, and it is based on three core principles: proven concept, high quality, and transparency through clear information.
1. Proven Concept
Our turbochargers are developed with technology that has been tested and refined for years in the industry. We use proven, reliable methods and solutions in both tests and real-world applications, which gives us confidence that our products will perform optimally for a long time.
2. Quality
We only use the highest-quality materials and components in our turbochargers. Each unit undergoes thorough quality control during the manufacturing process to ensure that it meets our high standards. The combination of carefully selected materials and advanced technology allows us to stand behind our products and offer a warranty that reflects their reliability and longevity.
3. Information and Transparency
We believe in sharing all the information needed to use and maintain your turbocharger in the best possible way. Through detailed product manuals, installation instructions, and technical specifications, we ensure that you are fully aware of how to handle the product to maximize its performance and longevity. This transparency helps to reduce the risk of misuse and gives you the confidence that the product will work as promised.
By combining these three factors, we can confidently offer a warranty that protects you as a customer and reflects our commitment to delivering high-performance and reliable turbochargers.
